304 Stainless Steel Coil
304 stainless steel is a superior material with regard to corrosion resistance, heat resistance, low temperature strength and mechanical properties, as one of the most widely used types of stainless steel. In addition, it has exceptional hot-workability such as stamping and bending, without leaving heat treatment hardening phenomenon.
Email：sdtg@taigangcnsteel.com
Phone：+86 17306356765
WhatsApp：+86 17306356765
Inquiry Now →

PRODUCT DESCRIPTION


304 Stainless Steel Coil Description

304 stainless steel coil is one of the most popular steel coils across the globe for a number of its favorable characteristics. 304 stainless steel mainly consists of iron, chromium and nickel. This combination makes for outstanding oxidation resistance and corrosion resistance of 304 stainless steel coils. 304 stainless steel is a versatile stainless steel material with stronger anti-rust properties than 200 series stainless steel materials. It also has better high temperature resistance. The 304 stainless steel coil is featured by a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. Due to its good versatility and relatively low cost, 304 stainless steel coil is commonly used in fields including food processing equipment, building materials, automobile parts.

Product Parameters

Product Name304 Stainless Steel Coil
TypeSteel Coil
Thickness2.5mm-10.0mm
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width610mm-2000mm
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,

Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming

Chemical Composition

CSiMnCrNiSP
≤ 0.08≤1.0≤ 2.018.0～20.08.0～10.5≤ 0.03≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

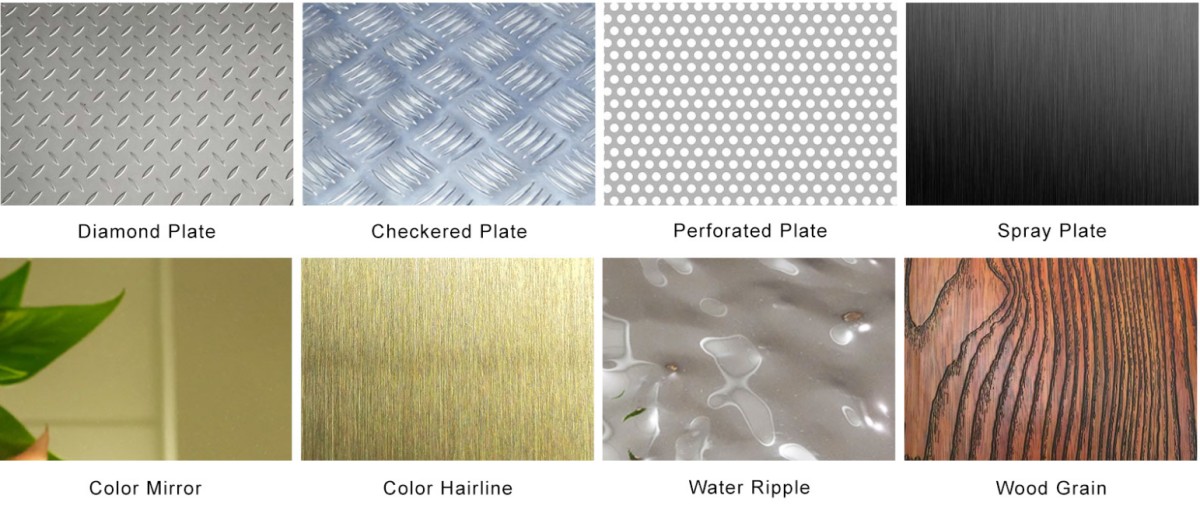

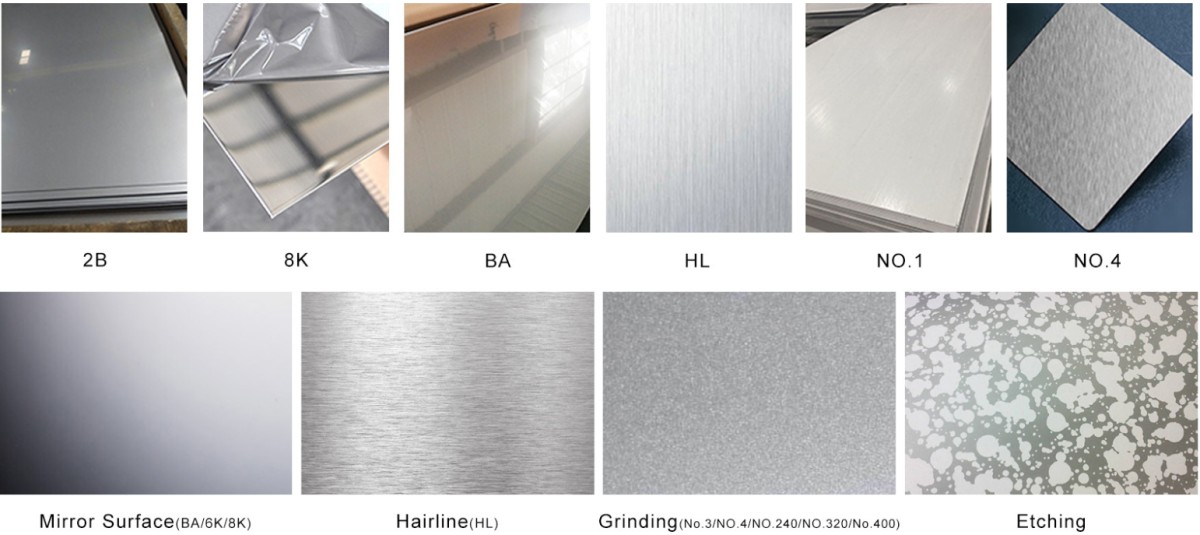

Surface Selection
