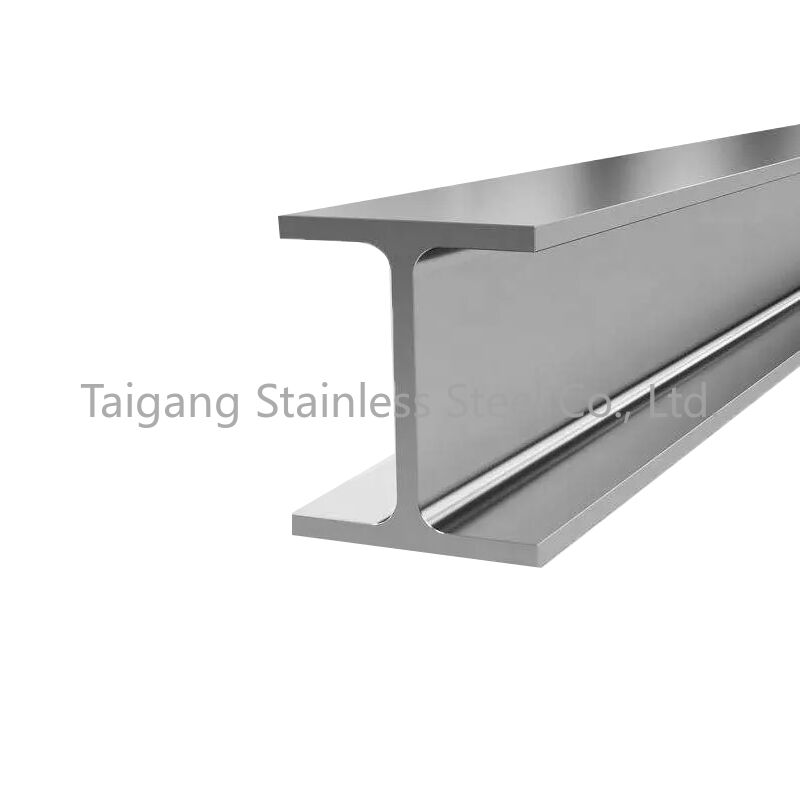

Stainless Steel I-Beam
The chemical composition of stainless steel I-beams belongs to the series of rolled steel products for general structures, and the main inspection indicators are C, Mn, P, and S. For hardware products, medical machinery, food machinery, ships, automobiles, doors and windows, furniture, large machinery, etc.
Inquiry Now →

PRODUCT DESCRIPTION

The chemical composition of stainless steel I-beams belongs to the series of rolled steel products for general structures, and the main inspection indicators are C, Mn, P, and S. For hardware products, medical machinery, food machinery, ships, automobiles, doors and windows, furniture, large machinery, etc.


stainless steel I-beam
 Type201(1Cr17Ni5Mn6N )、 202(2Cr13Mn9Ni4) 、301(1Cr17Ni7)、 303(Y1Cr18Ni9)、 304(OCr18Ni9) 、304L (03Cr19Ni10)、316(0Cr17Ni12Mo2)、 316L(00Cr17Ni14Mo2)、 321 (1Cr18Ni9Ti)、420( 2cr13 )、 310S(0Cr25Ni20)
standardNational standard: GB13296-97, GB/T14976-2002, GB/T14975-2002 American standard: ASTM A312/A312M, ASTM A213/A213M, ASTM A269/A269M German standard: DIN 2462 Japanese standard: JIS G3463 Other standards: according to customer Available in standard production.
type5#、6#、8#、10#、12#、14#、16#、18#、20#
applicationThe material is widely used in hardware products, medical machinery, food machinery, ships, automobiles, doors and windows, furniture, large machinery, etc.
PackingUse Iron Pieces and Use Wooden Cartons


Stainless steel standard steel grade comparison table and density table



ChinaJapanUSASouth KoreaEuropean UnionAustraliaTaiwan, ChinaDensityt/m3
GB/T20878JISASTMKSBSENASCNS
12Cr13SUS403403STS4034034037.75
20Cr13SUS420J1420STS420J11.4021420420J17.75
30Cr13SUS420J2STS420J21.4028420J2420J27.75
10Cr17SUS430430STS4301.40164304307.70
68Cr17SUS440A440ASTS440A440A440A7.70
06Cr19Ni10SUS304304STS3041.43013043047.93
022Cr19Ni10SUS304L304LSTS304L1.4306304L304L7.93
06Cr17Ni12Mo2SUS316316STS3161.44013163167.98
022Cr17Ni12Mo2SUS316L316LSTS316L1.4404316L316L7.98
06Cr18Ni11TiSUS321321STS3211.45413213217.93
06Cr18Ni11NbSUS347347STS3471.4553473477.98


PRODUCT DISPLAY

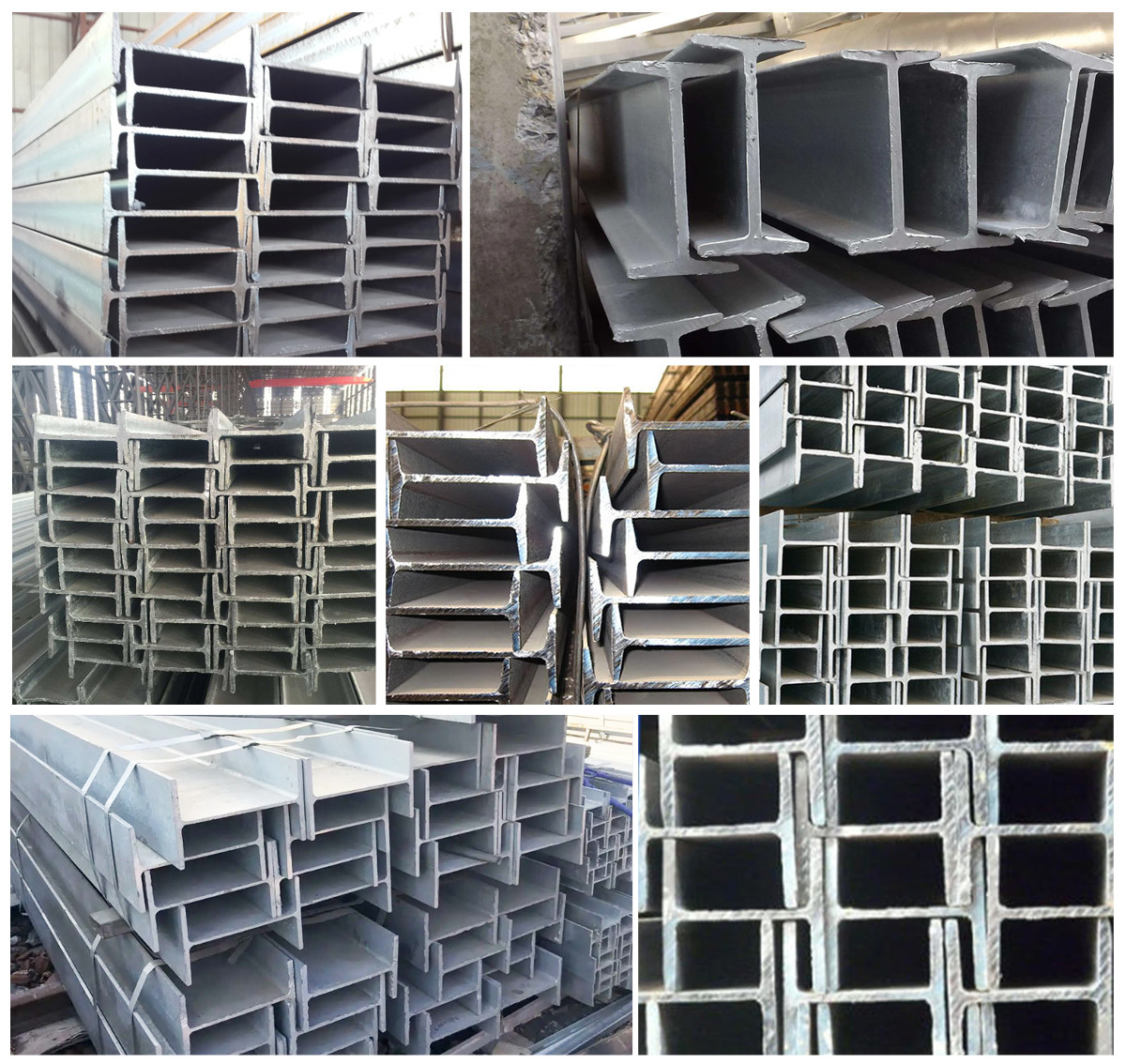

Galvanized H-beam (7).jpg
