DX51D Z150 Galvanized Coil

The Z150 in the DX51D Z150 galvanized coil is the actual coating name. The manufacturer describes the DX51D Z150 material as a mild steel galvanized layer for steel products. Specifically, DX51D is a steel grade characterized by its cold-formed bending and profiling qualities.

Email：sdtg@taigangcnsteel.com

Phone：+86 17306356765

WhatsApp：+86 17306356765

Inquiry Now →

PRODUCT DESCRIPTION

DX51D Z150 Galvanized Coil Description

Galvanized coil is made of a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. Zinc is generally represented by Z. Z is the abbreviation of English Zinc. For example, the Z80 surface zinc plating content is 80 grams per square. Z150 means that the galvanizing content is 150 grams per square meter, and so on. The number after Z indicates the average coating content at three points on both sides of the galvanized steel in grams per square meter. The general materials of hot-dip galvanizing on the market are: Z80, Z100, Z120, Z140, Z180, Z275, etc.

Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.

Product Parameters

Product Name	DX51D Z150 Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Length	508mm/610mm, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1	0.12	0.50	0.60	0.040	0.030	0.025
	SGCD2	0.10	0.50	0.45	0.030	0.030	0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400	0.25	0.50	1.70	0.200	0.035	0.015
	SGC440	0.25	0.50	2.00	0.200	0.035	0.015
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.015
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.015

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

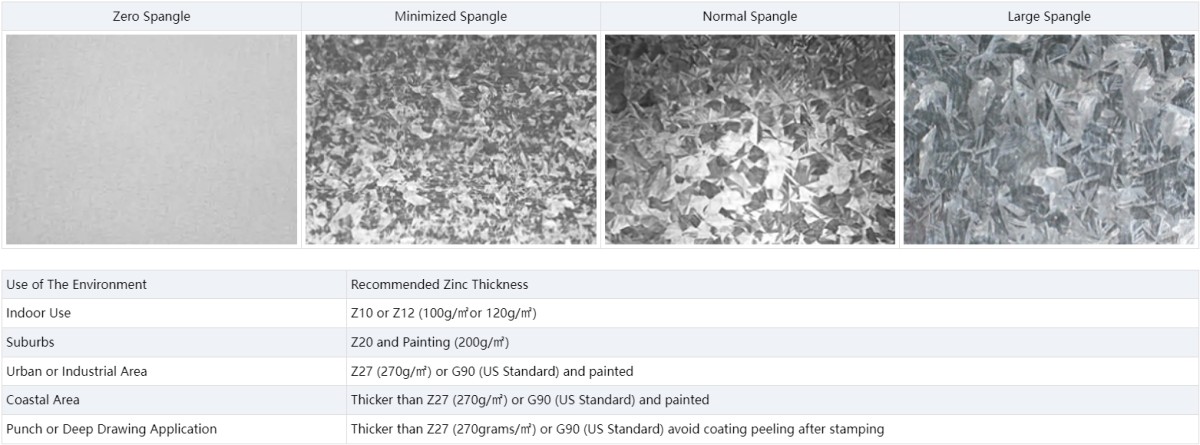

Galvanized Surface Selection

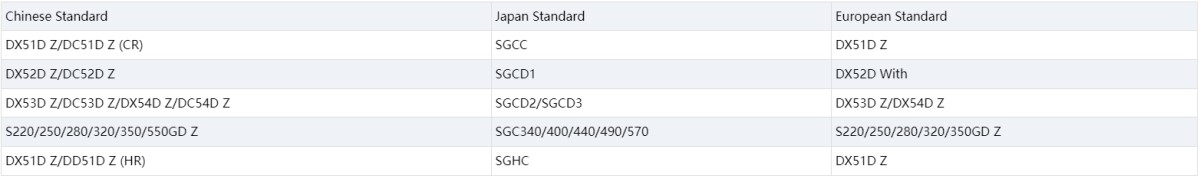

Material Comparison
